Wall Mounted Products-Low Voltage Model
TELiF-HESS 48100W and TELiF-HESS 48200W models
Tianneng provides consumers with a wall-mounted household energy storage system that uses stored energy to power your home in the event of a power outage, while storing solar / grid energy for use in the event of a power outage, saving more electricity bills for each household。
Product Feature
Tianneng household energy storage products have excellent performance, and consumers have a good sense of experience.
Premium Safety
LFP cells with BMS monitoring system.
Multiple Application
Capable of High-Powered Emergency-Backup and Off-Grid Function.
Waterproof design
IP65 waterproof design
Longer service life
＞6000 Times Super Cycle Life

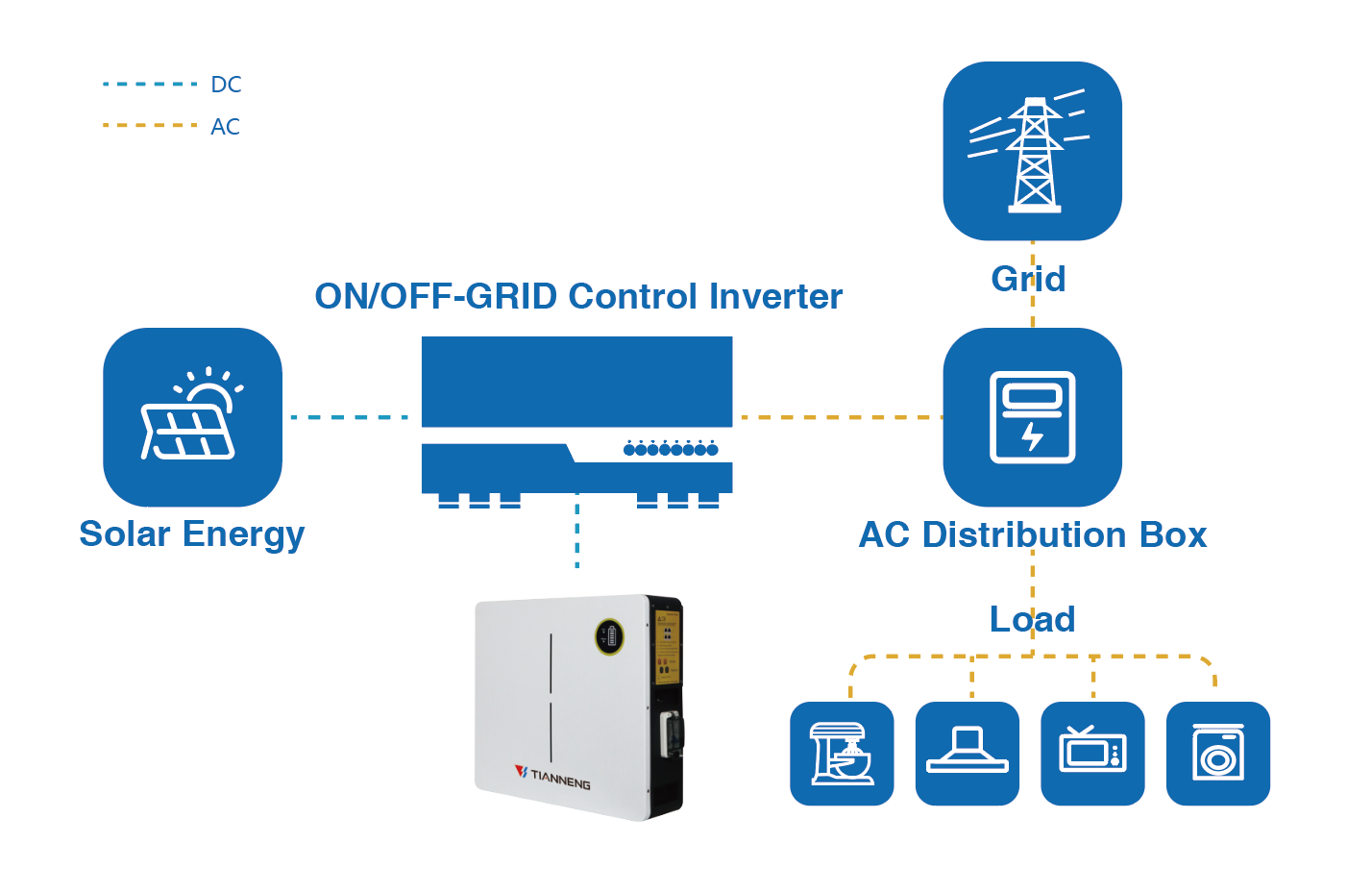

Technical Atlas
Product Specification
| Module | TELiF-HESS 48100W | TELiF-HESS 48200W |
|---|---|---|
| Single Module | 51.2V 100Ah | 51.2V 200Ah |
| Battery Energy | 5120 Wh | 10240 Wh |
Nominal Charge/ Discharge Current | 50A | 100A |
Max Charge/ Discharge Curren | 100A | 200A |
| Dimension (WxDxH) | 520*141.5*470mm(EU） 540*141.5*500mm(US) | 800*590*142mm |
| Working Voltage | 43.2~56.16Vdc | 43.2~56.16Vdc |
| Weight | 47.2kg | 96.5kg |
| Installation | Wall mounted/Floor stand | |
| Communication | RS485、CAN | |
| IP Rating | IP 65 | |
| Operating Temperature | 0°C~55°C | |
| Cell Technology | LiFePO4 | |
| Scalabitity | Max 15 batteries in parallel | |
| Cycle Life | 6000 @ 80% DOD, 25°C/0.5C | |
